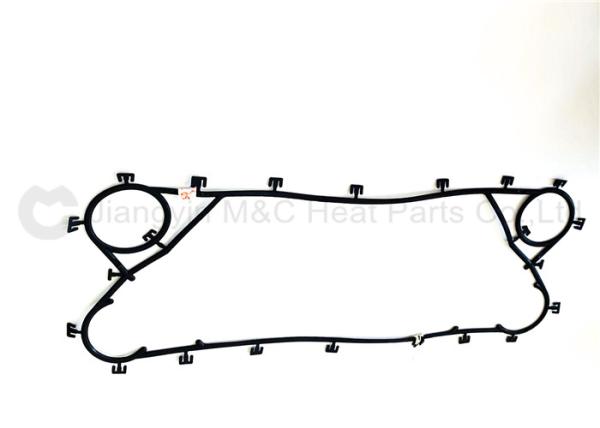

Durable Heat Exchanger Gaskets Prevent Fluid Leakage Increased Area SR6AG

Brand Name : M&C

Model Number : SR6AG

Certification : SGS FDA ISO

Place of Origin : Jiangsu China (mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000Pcs/Month

Delivery Time : 5-8 working days

Packaging Details : Standard export carton /wooden case

Product Name : Durable Heat Exchanger Gaskets

Material : NBR/EPDM/SILICONE/VITON

Application : PHE parts

Shape : Flat rubber gasket

Dimension : centre to centre: 1891mm*314mm

Transfer Area : 0.889㎡

Contact Now

Product Description

Plate heat exchanger is consist of corrugate heat transfer plate,according to a certain interval,composed of gasket pressed removable heat transfer equipment. When plate assembly,the two groups alternately arranged between the plate with a sealing pad to prevent fluid leakage and the formation of narrow network between the two channels. Why the plate has a variety of corrugated? It is to increase the heat transfer plate area and rigidity,and can make the fluid flow at low turbulence,in order to achieve the effect of enhanced heat transfer.The four hole corners of the plate,forming a fluid distribution pipe and drain pipe,two kinds of heat transfer medium flow into the respective flow through the plate for heat transfer.

Plate Material	Suitable for fluid
Stainless steel (Alloy304, Alloy 316, etc.)	Clean water, river water, edible oil, mineral oil
Titanium and titanium palladium (Ti, Ti-Pd)	Sea water, salt water, salt
20Cr, 18Ni, 6Mo (254SM0)	Dilute sulfuric acid, sparse salt solution, inorganic solution
Nickel (Ni)	High temperature, high concentration caustic soda
HASTELLOY alloy (C276, D205, B2G)	Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
Graphite	Hydrochloric acid, medium concentration sulfuric acid, phosphoric acid, hydrofluoric acid

Durable Heat Exchanger Gaskets Prevent Fluid Leakage Increased Area SR6AG

Seal Material	Temperature	Suitable for fluid
NBR	-15C°to +130C°	Water, seawater, mineral oil brine
NHNBR	-15C°to +160C°	High temperature mineral oil, high temperature water
EPDM	-25C°to +180C°	Hot water, steam, acid, alkali
Viton/FKM	-5C°to +180C°	Acid, alkali, fluid

The same type of plate, the corrugation has different size of the channel and the angle, according to different system conditions, different plate combinations can be used to achieve the best performance.

Production process

Durable Heat Exchanger Gaskets Prevent Fluid Leakage Increased Area SR6AG
