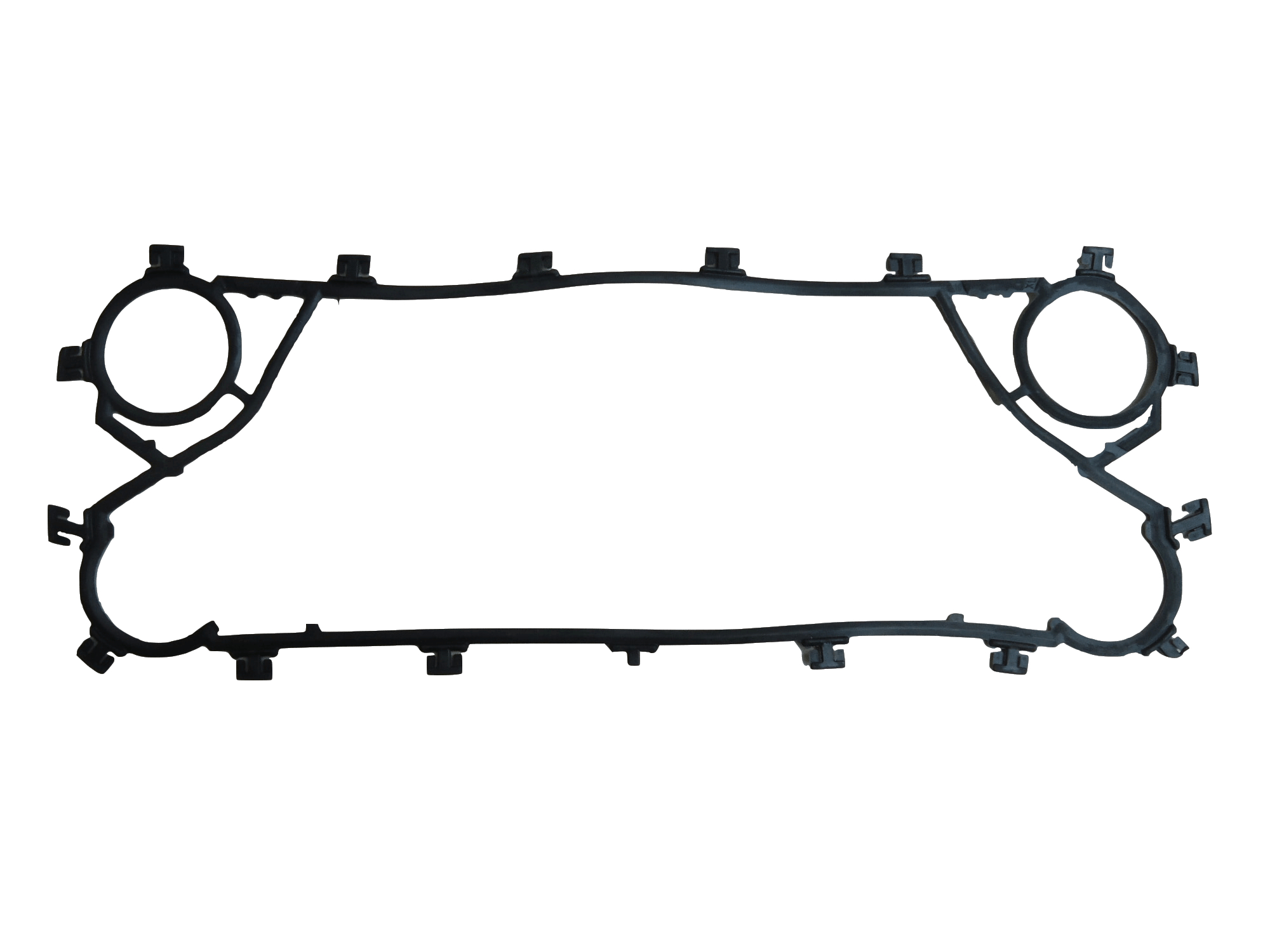

Accessory Gaskets FP10 Hardware High Temperature Resistance Plate Insulation

Product Categories

Jiangyin M&C Heat Parts Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : M&C

Model Number : FP10

Certification : SGS ISO

Place of Origin : CHINA

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C,T/T,Western Union

Supply Ability : 50000 pcs/month

Delivery Time : 5-8 working days

Packaging Details : Standard Export Carton,Wooden Case,Plywood

Product Name : Plate insulation Gasket

Material : NBR, EPDM

Type : plate heat exchanger spare parts, Clip-in,Loc-in, and glue-on

Application : HVAC,Power Generation,Food&Beverage Industry etc

Compressive Deformation : ≤15

Tensile Strength Mpa : ≥16

Contact Now

Technical Specification

Design Code	ASME,PED
Plate Material	SS304,SS316,904L,254SMO,C276 Titanium,Nickel,Incoloy825
Plate Thickness	0.5mm,0.6mm,0.8mm,1mm
Gasket Material	NBR,HNBR,EPDM,HEPDM,FKM(Viton),CR
Gasket assembly	Clip on,Lock in,Snap on,Glued
Frame material	Carbon steel,Stainless steel Stainless steel coat
Nozzle	Flange,Rubber insert,Thread Material insert,Clamp
Connection size	DN15-DN500
Connection standard	Customized
Color	Customized
Application	HVAC,Power,Sugar,Marine,Chemical

Gasket Selection

Gasket Material	Max. Temp	Application
NBR Standard	100℃/212℉	Remarkable resistance to oils,solvents and grease.
NBR-HT	130℃/266℉
HNBR	160℃/320℉
EPDM	150℃/302℉	Excellent resistance to all kinds of ageing(heat,oxygen,ozone,weathering). Sensitive to ultraviolet radiation and light. Good chemical resistance to ketones,alcohols,and diluted bases together with certain lubricants. Very low resistance to hydrocarbon solvents and oils.
EPDM-HT	160℃/320℉
FPM-A	180℃/356℉	Resistance to most fluids for industrial use
FPM-G	220℃/428℉	High resistance to extreme temperature : -50℃to+220℃. Optimum resistance to chemical product.

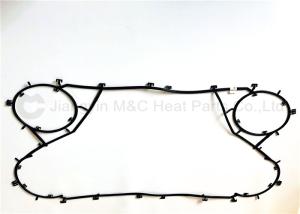

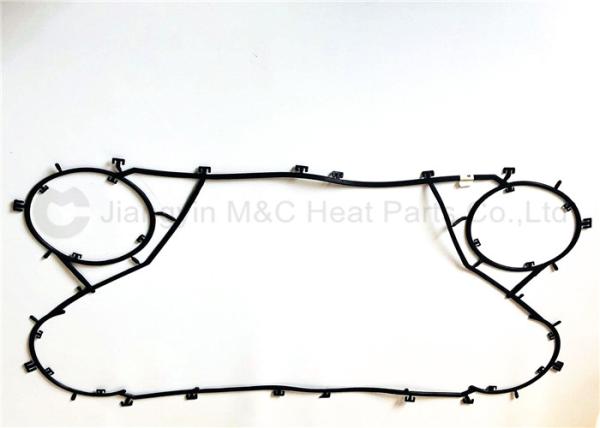

Detailed Image

Accessory Gaskets FP10 Hardware High Temperature Resistance Plate Insulation

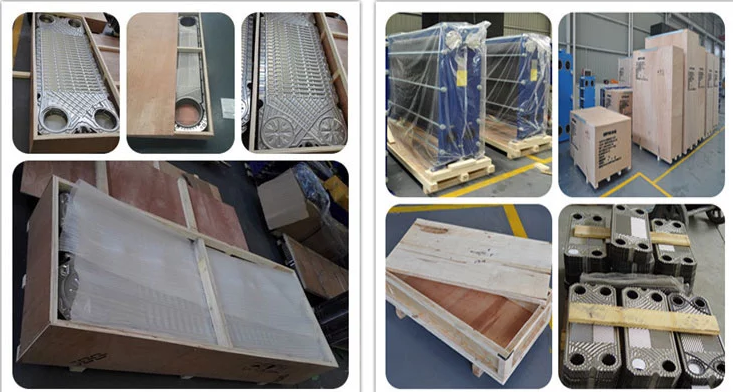

Packing And Shipping

Accessory Gaskets FP10 Hardware High Temperature Resistance Plate Insulation

Product Tags:

funke heat exchanger gaskets
